CloudCollection

new Cesium.CloudCollection(options)

engine/Source/Scene/CloudCollection.js 106

3D 场景中可渲染的云集合。 A renderable collection of clouds in the 3D scene.

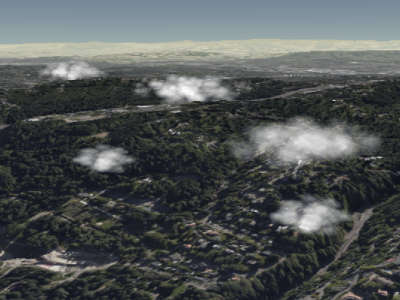

积云示例 Example cumulus clouds

使用以下方法在集合中添加和删除云 Clouds are added and removed from the collection using CloudCollection#add and CloudCollection#remove.

名称 Name	类型 Type	说明 Description
options	object	可选 optional 具有以下属性的对象： Object with the following properties: 名称 Name 类型 Type 默认值 Default 说明 Description show boolean true 可选 optional 是否显示云。 Whether to display the clouds. noiseDetail number 16.0 可选 optional 噪声纹理中所需的细节量。 Desired amount of detail in the noise texture. noiseOffset number Cartesian3.ZERO 可选 optional 噪声纹理中数据的所需转换。 Desired translation of data in noise texture. debugBillboards boolean false 可选 optional 仅用于调试。确定广告牌是否以不透明颜色渲染。 For debugging only. Determines if the billboards are rendered with an opaque color. debugEllipsoids boolean false 可选 optional 仅用于调试。确定云是否将渲染为不透明的椭球体。 For debugging only. Determines if the clouds will be rendered as opaque ellipsoids.

示例： Example:

// Create a cloud collection with two cumulus clouds
const clouds = scene.primitives.add(new Cesium.CloudCollection());
clouds.add({
  position : new Cesium.Cartesian3(1.0, 2.0, 3.0),
  maximumSize: new Cesium.Cartesian3(20.0, 12.0, 8.0)
});
clouds.add({
  position : new Cesium.Cartesian3(4.0, 5.0, 6.0),
  maximumSize: new Cesium.Cartesian3(15.0, 9.0, 9.0),
  slice: 0.5
});

演示： Demo:

• Cesium Sandcastle Clouds Demo
• Cesium Sandcastle Cloud Parameters Demo

另见： See:

• CloudCollection#add
• CloudCollection#remove
• CumulusCloud

成员 Members

默认值： Default Value: false

默认值： Default Value: false

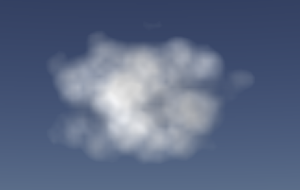

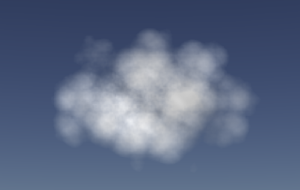

控制在用于渲染积云的预先计算的噪声纹理中捕获的细节量。为了使纹理可平铺，该纹理必须是 2 的幂。为了获得最佳结果，请将其设置为 2 的幂 Controls the amount of detail captured in the precomputed noise texture used to render the cumulus clouds. In order for the texture to be tileable, this must be a power of two. For best results, set this to be a power of two between 8.0 and 32.0 (inclusive).

clouds.noiseDetail = 8.0;

clouds.noiseDetail = 32.0;

默认值： Default Value: 16.0

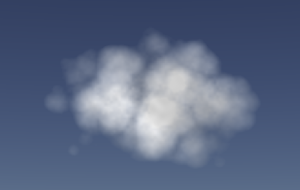

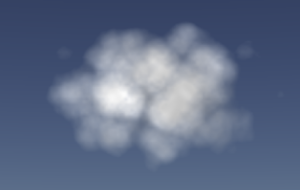

将平移应用于噪声纹理坐标以生成不同的数据。如果默认噪声不能生成好看的云，则可以修改此设置。 Applies a translation to noise texture coordinates to generate different data. This can be modified if the default noise does not generate good-looking clouds.

default

clouds.noiseOffset = new Cesium.Cartesian3(10, 20, 10);

默认值： Default Value: Cartesian3.ZERO

默认值： Default Value: true

方法 Methods

性能： Performance:

Calling add 是预期的常数时间。然而，集合的顶点缓冲区被重写 is expected constant time. However, the collection's vertex buffer is rewritten - an O(n) 操作也会产生 CPU 到 GPU 的开销。为了获得最佳性能，请在调用之前添加尽可能多的云 operation that also incurs CPU to GPU overhead. For best performance, add as many clouds as possible before calling update.

返回： Returns:

抛出： Throws:

• DeveloperError : This object was destroyed, i.e., destroy() was called.

示例： Examples:

// Example 1:  Add a cumulus cloud, specifying all the default values.
const c = clouds.add({
  show : true,
  position : Cesium.Cartesian3.ZERO,
  scale : new Cesium.Cartesian2(20.0, 12.0),
  maximumSize: new Cesium.Cartesian3(20.0, 12.0, 12.0),
  slice: -1.0,
  cloudType : CloudType.CUMULUS
});

// Example 2:  Specify only the cloud's cartographic position.
const c = clouds.add({
  position : Cesium.Cartesian3.fromDegrees(longitude, latitude, height)
});

另见： See:

• CloudCollection#remove
• CloudCollection#removeAll

返回： Returns:

另见： See:

• CloudCollection#get

抛出： Throws:

• DeveloperError : This object was destroyed, i.e., destroy() was called.

示例： Example:

clouds = clouds && clouds.destroy();

另见： See:

• CloudCollection#isDestroyed

性能： Performance:

预期时间恒定。如果云从集合中移除并且 Expected constant time. If clouds were removed from the collection and CloudCollection#update 没有被调用，隐式的 was not called, an implicit O(n) 执行操作。 operation is performed.

返回： Returns:

抛出： Throws:

• DeveloperError : This object was destroyed, i.e., destroy() was called.

示例： Example:

// Toggle the show property of every cloud in the collection
const len = clouds.length;
for (let i = 0; i < len; ++i) {
  const c = clouds.get(i);
  c.show = !c.show;
}

另见： See:

• CloudCollection#length

返回： Returns:

另见： See:

• CloudCollection#destroy

返回： Returns:

抛出： Throws:

• DeveloperError : This object was destroyed, i.e., destroy() was called.

示例： Example:

const c = clouds.add(...);
clouds.remove(c);  // Returns true

另见： See:

• CloudCollection#add
• CloudCollection#removeAll
• CumulusCloud#show

性能： Performance:

O(n)。从集合中删除所有云然后添加新云比完全创建一个新集合更有效。 . It is more efficient to remove all the clouds from a collection and then add new ones than to create a new collection entirely.

抛出： Throws:

• DeveloperError : This object was destroyed, i.e., destroy() was called.

示例： Example:

clouds.add(...);
clouds.add(...);
clouds.removeAll();

另见： See:

• CloudCollection#add
• CloudCollection#remove
