Label

成员 Members

默认值： Default Value: false

示例： Examples:

// Example 1.
// Set a label's rightToLeft before init
Cesium.Label.enableRightToLeftDetection = true;
const myLabelEntity = viewer.entities.add({
  label: {
    id: 'my label',
    text: 'זה טקסט בעברית \n ועכשיו יורדים שורה',
  }
});

// Example 2.
const myLabelEntity = viewer.entities.add({
  label: {
    id: 'my label',
    text: 'English text'
  }
});
// Set a label's rightToLeft after init
Cesium.Label.enableRightToLeftDetection = true;
myLabelEntity.text = 'טקסט חדש';

默认值： Default Value: new Color(0.165, 0.165, 0.165, 0.8)

默认值： Default Value: new Cartesian2(7, 5)

默认值： Default Value: undefined

默认值： Default Value: undefined

获取并设置在眼睛坐标中应用于此标签的 3D 笛卡尔偏移。眼坐标是左手坐标系，其中 Gets and sets the 3D Cartesian offset applied to this label in eye coordinates. Eye coordinates is a left-handed coordinate system, where x 指向观看者的右侧， points towards the viewer's right, y 点向上，并且 points up, and z 点到屏幕上。眼睛坐标使用与世界坐标和模型坐标相同的比例，通常为米。 points into the screen. Eye coordinates use the same scale as world and model coordinates, which is typically meters.

眼睛偏移通常用于将多个标签或对象排列在同一位置，例如，将标签排列在其相应的 3D 模型上方。 An eye offset is commonly used to arrange multiple label or objects at the same position, e.g., to arrange a label above its corresponding 3D model.

下面，标签位于地球中心，但眼睛偏移使其始终显示在地球顶部，无论观看者或地球的方向如何。 Below, the label is positioned at the center of the Earth but an eye offset makes it always appear on top of the Earth regardless of the viewer's or Earth's orientation.

l.eyeOffset = new Cartesian3(0.0, 8000000.0, 0.0);

默认值： Default Value: Cartesian3.ZERO

默认值： Default Value: Color.WHITE

另见： See:

• HTML canvas 2D context fill and stroke styles

默认值： Default Value: '30px sans-serif'

另见： See:

• HTML canvas 2D context text styles

默认值： Default Value: HeightReference.NONE

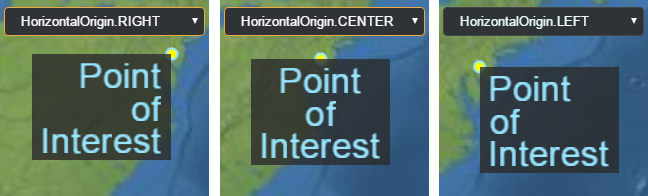

获取或设置此标签的水平原点，这确定标签是否绘制到其锚点位置的左侧、中心或右侧。 Gets or sets the horizontal origin of this label, which determines if the label is drawn to the left, center, or right of its anchor position.

默认值： Default Value: HorizontalOrigin.LEFT

示例： Example:

// Use a top, right origin
l.horizontalOrigin = Cesium.HorizontalOrigin.RIGHT;
l.verticalOrigin = Cesium.VerticalOrigin.TOP;

默认值： Default Value: Color.BLACK

另见： See:

• HTML canvas 2D context fill and stroke styles

默认值： Default Value: 1.0

另见： See:

• HTML canvas 2D context fill and stroke styles

获取或设置屏幕空间中距此标签原点的像素偏移量。这通常用于在同一位置对齐多个标签和广告牌，例如图像和文本。屏幕空间原点是画布的左上角； Gets or sets the pixel offset in screen space from the origin of this label. This is commonly used to align multiple labels and billboards at the same position, e.g., an image and text. The screen space origin is the top, left corner of the canvas; x 从左到右增加，并且 increases from left to right, and y 从上到下增加。 increases from top to bottom.

default

l.pixeloffset = new Cartesian2(25, 75);

标签的来源由黄点指示。 The label's origin is indicated by the yellow point.

默认值： Default Value: Cartesian2.ZERO

示例： Examples:

// Example 1.
// Set a label's pixel offset scale to 0.0 when the
// camera is 1500 meters from the label and scale pixel offset to 10.0 pixels
// in the y direction the camera distance approaches 8.0e6 meters.
text.pixelOffset = new Cesium.Cartesian2(0.0, 1.0);
text.pixelOffsetScaleByDistance = new Cesium.NearFarScalar(1.5e2, 0.0, 8.0e6, 10.0);

// Example 2.
// disable pixel offset by distance
text.pixelOffsetScaleByDistance = undefined;

获取或设置与标签大小（以像素为单位）相乘的统一比例。规模为 Gets or sets the uniform scale that is multiplied with the label's size in pixels. A scale of 1.0 不改变标签的尺寸；规模大于 does not change the size of the label; a scale greater than 1.0 放大标签；正标度小于 enlarges the label; a positive scale less than 1.0 缩小标签。 shrinks the label.

应用较大的比例值可能会使标签像素化。要使文本更大而不像素化，请在调用时使用更大的字体大小 Applying a large scale value may pixelate the label. To make text larger without pixelation, use a larger font size when calling Label#font instead.

上图中从左到右，比例尺分别是 From left to right in the above image, the scales are 0.5, 1.0, 和 , and 2.0.

默认值： Default Value: 1.0

示例： Examples:

// Example 1.
// Set a label's scaleByDistance to scale by 1.5 when the
// camera is 1500 meters from the label and disappear as
// the camera distance approaches 8.0e6 meters.
label.scaleByDistance = new Cesium.NearFarScalar(1.5e2, 1.5, 8.0e6, 0.0);

// Example 2.
// disable scaling by distance
label.scaleByDistance = undefined;

默认值： Default Value: true

默认值： Default Value: false

默认值： Default Value: LabelStyle.FILL

默认值： Default Value: 1.0

示例： Examples:

// Example 1.
// Set a label's translucencyByDistance to 1.0 when the
// camera is 1500 meters from the label and disappear as
// the camera distance approaches 8.0e6 meters.
text.translucencyByDistance = new Cesium.NearFarScalar(1.5e2, 1.0, 8.0e6, 0.0);

// Example 2.
// disable translucency by distance
text.translucencyByDistance = undefined;

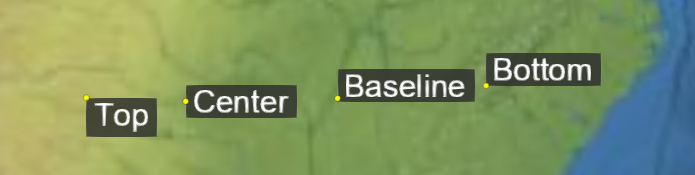

获取或设置此标签的垂直原点，它确定标签是在其锚点位置的上方、下方还是中心。 Gets or sets the vertical origin of this label, which determines if the label is to the above, below, or at the center of its anchor position.

默认值： Default Value: VerticalOrigin.BASELINE

示例： Example:

// Use a top, right origin
l.horizontalOrigin = Cesium.HorizontalOrigin.RIGHT;
l.verticalOrigin = Cesium.VerticalOrigin.TOP;

方法 Methods

返回： Returns:

示例： Example:

console.log(l.computeScreenSpacePosition(scene).toString());

另见： See:

• Label#eyeOffset
• Label#pixelOffset

返回： Returns:

返回： Returns:

类型定义 Type Definitions

属性： Properties:

名称 Name	类型 Type	Attributes	默认值 Default	说明 Description
position	Cartesian3			标签的笛卡尔位置。 The cartesian position of the label.
id	*	<可选> &lt;optional>		选取标签时要返回的用户定义对象 A user-defined object to return when the label is picked with Scene#pick.
show	boolean	<可选> &lt;optional>	true	确定是否显示此标签。 Determines if this label will be shown.
text	string	<可选> &lt;optional>		指定标签文本的字符串。 A string specifying the text of the label.
font	string	<可选> &lt;optional>	'30px 无衬线' '30px sans-serif'	指定用于绘制此标签的字体的字符串。字体使用与 CSS 'font' 属性相同的语法指定。 A string specifying the font used to draw this label. Fonts are specified using the same syntax as the CSS 'font' property.
style	LabelStyle	<可选> &lt;optional>	LabelStyle.FILL	A LabelStyle 指定标签的样式。 specifying the style of the label.
scale	number	<可选> &lt;optional>	1.0	指定与标签大小相乘的统一比例的数字。 A number specifying the uniform scale that is multiplied with the label size.
showBackground	boolean	<可选> &lt;optional>	false	确定是否显示该标签后面的背景。 Determines if a background behind this label will be shown.
backgroundColor	Color	<可选> &lt;optional>	新颜色(0.165, 0.165, 0.165, 0.8) new Color(0.165, 0.165, 0.165, 0.8)	A Color 指定标签的背景颜色。 specifying the background color of the label.
backgroundPadding	Cartesian2	<可选> &lt;optional>	新笛卡尔2(7, 5) new Cartesian2(7, 5)	A Cartesian2 指定水平和垂直背景填充（以像素为单位）。 Specifying the horizontal and vertical background padding in pixels.
pixelOffset	Cartesian2	<可选> &lt;optional>	Cartesian2.ZERO	A Cartesian2 指定屏幕空间中距此标签原点的像素偏移量。 specifying the pixel offset in screen space from the origin of this label.
eyeOffset	Cartesian3	<可选> &lt;optional>	Cartesian3.ZERO	A Cartesian3 指定在眼睛坐标中应用于此标签的 3D 笛卡尔偏移。 specifying the 3D Cartesian offset applied to this label in eye coordinates.
horizontalOrigin	HorizontalOrigin	<可选> &lt;optional>	HorizontalOrigin.LEFT	A HorizontalOrigin 指定该标签的水平原点。 specifying the horizontal origin of this label.
verticalOrigin	VerticalOrigin	<可选> &lt;optional>	VerticalOrigin.BASELINE	A VerticalOrigin 指定该标签的垂直原点。 specifying the vertical origin of this label.
heightReference	HeightReference	<可选> &lt;optional>	HeightReference.NONE	A HeightReference 指定此标签的高度参考。 specifying the height reference of this label.
fillColor	Color	<可选> &lt;optional>	Color.WHITE	A Color 指定标签的填充颜色。 specifying the fill color of the label.
outlineColor	Color	<可选> &lt;optional>	Color.BLACK	A Color 指定标签的轮廓颜色。 specifying the outline color of the label.
outlineWidth	number	<可选> &lt;optional>	1.0	指定标签轮廓宽度的数字。 A number specifying the outline width of the label.
translucencyByDistance	NearFarScalar	<可选> &lt;optional>		A NearFarScalar 根据标签与相机的距离指定标签的近和远半透明属性。 specifying near and far translucency properties of the label based on the label's distance from the camera.
pixelOffsetScaleByDistance	NearFarScalar	<可选> &lt;optional>		A NearFarScalar 根据标签与相机的距离指定标签的近和远像素偏移缩放属性。 specifying near and far pixel offset scaling properties of the label based on the label's distance from the camera.
scaleByDistance	NearFarScalar	<可选> &lt;optional>		A NearFarScalar 根据标签与相机的距离指定标签的近和远缩放属性。 specifying near and far scaling properties of the label based on the label's distance from the camera.
distanceDisplayCondition	DistanceDisplayCondition	<可选> &lt;optional>		A DistanceDisplayCondition 指定该标签将在距相机的距离处显示。 specifying at what distance from the camera that this label will be displayed.
disableDepthTestDistance	number	<可选> &lt;optional>		距相机的距离，超过该距离，深度测试将被禁用，例如，防止地形剪切。 The distance from the camera, beyond which, depth testing is disabled—to, for example, prevent clipping against terrain.
